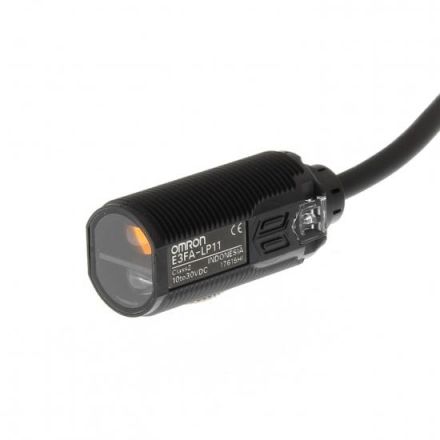

Photo switch - PRO line, - background suppressor, range 100mm fixed, - M18 plastic housing, protection class IP69k, - light/dark switching via wiring, - PNP, 2m cable
| Property | Value |
| Ambient temperature: | -25 to 55 °C |
| Design of the switching output: | PNP |
| Explosion protection category for gas: | without |
| With restart lock: | no |
| Setting range: | 0 to 100 mm |
| Material of the housing: | plastic |
| Switching frequency: | 1000 Hz |
| Width of the sensor: | 15 mm |
| With communication interface RS-232: | no |
| With communication interface DeviceNet: | no |
| Explosion protection category for dust: | without |
| Analog output -10 V ... +10 V: | no |
| With INTERBUS communication interface: | no |
| Type of electrical connection: | cable |
| Button function: | light/dark switching |
| Lenght of sensor: | 41 mm |
| Diameter of sensor: | 18 mm |
| Setting method: | other |
| Number of semiconductor outputs with signaling function: | 1 |
| Safety type according to IEC 61496-1: | 1 |
| Equipment protection class: | Protection class 3 |
| With analog communication interface: | no |
| Light type: | Unpolarized red light |
| Sensor wavelength: | 624 nm |
| With SSI communication interface: | no |
| With RS-422 communication interface: | no |
| Triangulation: | Background suppression |
| Analog output 0 V ... 10 V: | no |
| With monitoring function of downstream devices: | no |
| With PROFIBUS communication interface: | no |
| Cable sheath material: | Polyvinyl chloride (PVC) |
| Suitable for safety functions: | no |
| With CANOpen communication interface: | no |
| With AS-Interface communication interface: | no |
| Housing design: | Cylinder, thread |
| With other analog output: | no |
| Pre-failure message: | no |
| AWG number: | 26 |
| Laser protection class: | without |
| Height of the sensor: | 18 mm |
| Rated switching distance: | 100 mm |
| Design of the switching function: | Normally open (NO) |
| Scanning range: | 0 to 100 mm |
| Material of the optical surface: | Plastic |
| Max. Output current at the safe output: | 100 mA |
| With Ethernet communication interface: | no |
| Design of the interface for safety-related communication: | other |
| Analog output 4 mA ... 20 mA: | no |
| Light spot: | 100 mm² |
| With RS-485 communication interface: | no |
| Response time: | 0.5 ms |
| Reflector included in delivery included: | no |
| Analog output 0 mA ... 20 mA: | no |
| With communication interface SSD: | no |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. switching distance: | 100 mm |
| Max. Output current: | 100 mA |
| Voltage type: | DC |
| With time function: | no |
| Protection class (IP): | IP67 |
