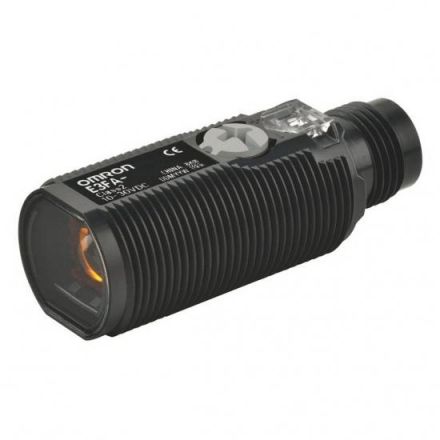

OMRON 378888 E3FA-BP21 OMI Photoswitch

OMRON 378888 E3FA-BP21 OMI Photoswitch

In stock

SKU: 610068

Price on request

€132.58

€0

Overview

Photo switch, - PROplus line, - reflection light barrier, range 500mm, - coaxial optics, for transparency detection, - M18 plastic housing, protection class IP69k, - light/dark switching via wiring, - PNP, M12 connector 4-pin, - reflector is available separately, recommended: E39-RP1

Property	Value
Rated switching distance:	500 mm
Max. switching distance:	500 mm
Min. reflector distance:	100 mm
Max. Output current:	100 mA
Rated control supply voltage Us at DC:	10 to 30 V
Button function:	light/dark switching
Protection class (IP):	IP67
Height of sensor:	18 mm
Width of sensor:	15 mm
Length of sensor:	45 mm
Diameter of sensor:	18 mm
Response time:	0.5 ms
Switching frequency:	2000 Hz
Laser protection class:	without
Type of voltage:	DC
Housing material:	Plastic
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With DeviceNet communication interface:	no
Execution of the switching function:	Normally open (NO)
With INTERBUS communication interface:	no
With Analog communication interface:	no
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With communication interface PROFIBUS:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	polarized red light
Material of the optical surface:	plastic
With RS-422 communication interface:	no
Setting method:	manual setting
With RS-232 communication interface:	no
Number of semiconductor outputs with reporting function:	1
Design of the interface for safety-related communication:	other
Design of the electrical connection:	M12 connector
Design of the switching output:	PNP
Equipment protection class:	Protection class 0
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cylinder, thread
Ambient temperature:	-25 to 55 °C
Safety type according to IEC 61496-1:	1
With monitoring function for downstream devices:	no
Pre-fault signal:	no
Sensor wavelength:	624 nm
With restart lock:	no
Protection class (NEMA):	other

Characteristics

Diameter of the sensor18 mm

Design of the switching functionNormally open (NO)

Switching frequency2000 Hz

HABE3FA-BP21 OMI

Manufacturer

HAN378888

GTIN4548583440951

Design of the interface for safety-related communicationOther

Design of the switching outputPNP

Design of the electrical connectionConnector M12

Rated control supply voltage Us at DC10 to 30 V

Width of the sensor15 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCylinder, thread

Height of the sensor18 mm

Length of the sensor45 mm

IP protection)IP67

Protection class (NEMA)Other

Voltage typeDC

Ambient temperature-25 to 55 °C

Housing materialPlastic
