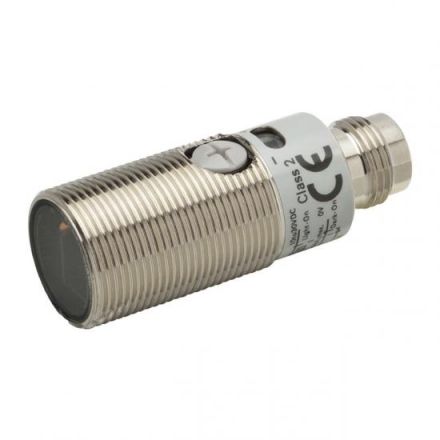

Photo switch, - PRO line, - button, range 100mm, - M18 metal housing, protection class IP69k, - light/dark switching via wiring, - NPN, M12 connector 4-pin
| Property | Value |
| Detecting range: | 5 to 100 mm |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. Output current: | 100 mA |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Lenght of sensor: | 48 mm |
| Diameter of sensor: | 18 mm |
| With analog communication interface: | no |
| With RS-422 communication interface: | no |
| Max. Sensing distance: | 100 mm |
| Max. Output current at the safe output: | 100 mA |
| Response time: | 0.5 ms |
| Reflector included in delivery: | no |
| Analog output -10 V ... +10 V: | no |
| With Ethernet communication interface: | no |
| Analog output 0 mA ... 20 mA: | no |
| With SSD communication interface: | no |
| AWG number: | 23 |
| With other analog output: | no |
| Safety type according to IEC 61496-1: | 1 |
| With communication interface SSI: | no |
| With monitoring function of downstream devices: | no |
| Analog output 0 V ... 10 V: | no |
| Wavelength of the sensor: | 624 nm |
| With communication interface RS-232: | no |
| With communication interface AS-Interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| With restart lock: | no |
| Analog output 4 mA ... 20 mA: | no |
| With communication interface PROFIBUS: | no |
| With communication interface RS-485: | no |
| With communication interface DeviceNet: | no |
| With communication interface INTERBUS: | no |
| Design of the interface for safety-related communication: | other |
| With communication interface CANOpen: | no |
| Suitable for safety functions: | no |
| Design of the electrical connection: | M12 connector |
| Design of the switching output: | NPN |
| Design of the switching function: | programmable/configurable |
| Equipment protection class: | Protection class 0 |
| Setting method: | manual setting |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cylinder, thread |
| Laser protection class: | without |
| Light type: | Red light unpolarized |
| Light spot: | 1800 mm² |
| Switching frequency: | 2000 Hz |
| Voltage type: | DC |
| Ambient temperature: | -25 to 55 °C |
| Pre-fault warning: | no |
| Material of the optical surface: | Plastic |
| Material of the housing: | Metal |
| Material of the cable sheath: | other |
| With time function: | no |
| Protection class (NEMA): | other |
