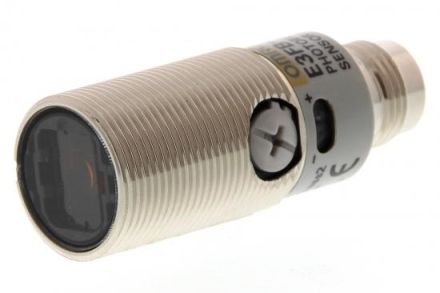

OMRON 378932 E3FB-BP21 OMI photo switch

OMRON 378932 E3FB-BP21 OMI photo switch

In stock

SKU: 610112

Price on request

€138.39

€0

Overview

Photo switch, - reflection light barrier, range 500mm, - transparency detection, - M18 metal housing, protection class IP69k, - light/dark switching via wiring, - PNP, M12 connector 4-pin

Property	Value
Rated switching distance:	500 mm
Max. switching distance:	500 mm
Min. reflector distance:	100 mm
Max. Output current:	100 mA
Rated control supply voltage Us at DC:	10 to 30 V
Button function:	light/dark switching
Protection class (IP):	IP67
Length of sensor:	48 mm
Diameter of sensor:	18 mm
Reaction time:	0.5 ms
Switching frequency:	1000 Hz
Laser protection class:	without
Type of voltage:	DC
Material of the housing:	metal
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
Execution of the switching function:	programmable/configurable
With INTERBUS communication interface:	no
With analog communication interface:	no
With Ethernet communication interface:	no
Analog output 4 mA ... 20 mA:	no
With other analog output:	no
With PROFIBUS communication interface:	no
Reflector included in delivery:	no
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	Red light polarized
Material of the optical surface:	Plastic
With communication interface RS-422:	no
Setting method:	manual setting
With communication interface RS-232:	no
Number of semiconductor outputs with signaling function:	1
Design of the interface for safety-related communication:	other
Design of the electrical Connection:	M12 connector
Switching output design:	PNP
Equipment protection class:	Protection class 0
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cylinder, thread
Ambient temperature:	-25 to 55 °C
Safety type according to IEC 61496-1:	1
With monitoring function of downstream devices:	no
Pre-failure warning:	no
Wavelength of the sensor:	624 nm
With restart lock:	no
Protection class (NEMA):	other

Characteristics

Diameter of the sensor18 mm

Design of the switching functionProgrammable/configurable

Switching frequency1000 Hz

HABE3FB-BP21 OMI

Manufacturer

HAN378932

GTIN4548583441392

Design of the interface for safety-related communicationOther

Design of the switching outputPNP

Design of the electrical connectionConnector M12

Rated control supply voltage Us at DC10 to 30 V

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCylinder, thread

Length of the sensor48 mm

IP protection)IP67

Protection class (NEMA)Other

Voltage typeDC

Ambient temperature-25 to 55 °C

Housing materialMetal
