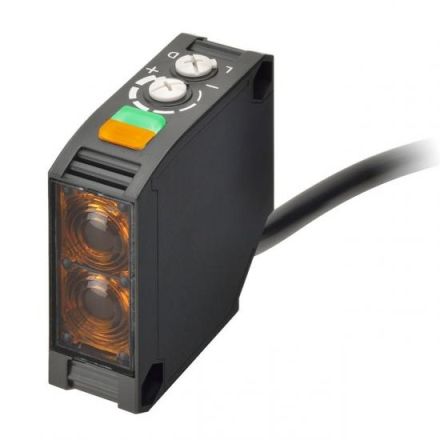

OMRON 379009 E3JK-RR12 5M OMS Photoswitch

In stock
SKU: 610145
€142.97
Into a basketIn the basketGo

Overview

Photo switch - LITE line, reflection light barrier, 6m, ABS housing, cuboid 18x50x50mm, red light LED 624nm, 24..240VAC/DC, relay output, 5m cable

Property Value
Rated switching distance: 7000 mm
Max. switching distance: 7000 mm
Min. reflector distance: 100 mm
Max. Output current: 3 mA
Rated control supply voltage Us at AC 50 Hz: 21.6 to 264 V
Rated control supply voltage Us at AC 60 Hz: 21.6 to 264 V
Rated control supply voltage Us at DC: 21.6 to 264 V
Button function: light/dark switching
Protection class (IP): IP64
Height of the sensor: 50 mm
Width of the sensor: 18 mm
Length of the sensor: 50 mm
Response time: 20 ms
Switching frequency: 25 Hz
Laser protection class: without
Type of voltage: AC/DC
Material of the housing: Plastic
With communication interface SSI: no
With communication interface AS-Interface: no
With time function: no
With communication interface DeviceNet: no
Execution of the switching function: Changeover contact (NO/NC)
With communication interface INTERBUS: no
With communication interface Analog: no
With communication interface Ethernet: no
Analog output 4 mA ... 20 mA: no
With other analog output: no
With communication interface PROFIBUS: no
Reflector included in delivery: no
Suitable for safety functions: no
Analog output 0 mA ... 20 mA: no
Analog output -10 V ... +10 V: no
With communication interface SSD: no
With communication interface CANOpen: no
With communication interface RS-485: no
Analog output 0 V ... 10 V: no
Light type: Red light unpolarized
Material of the optical surface: Plastic
With communication interface RS-422: no
Setting method: manual setting
With communication interface RS-232: no
Number of contact outputs with signaling function: 1
Design of the interface for safety-related communication: other
Design of the electrical connection: cable
Design of the switching output: relay contact
Equipment protection class: Protection class 0
Explosion protection category for gas: without
Explosion protection category for dust: without
Housing design: Cuboid
Ambient temperature: -25 to 55 °C
Safety type according to IEC 61496-1: 1
With monitoring function for downstream devices: no
Pre-fault warning: no
Sensor wavelength: 624 nm
With Restart lock: no
Protection class (NEMA): other

Characteristics

Design of the switching functionChangeover contact (NO/NC)
Switching frequency25 Hz
HABE3JK-RR12 5M OM
ManufacturerOMRON
HAN379009
GTIN4548583484023
Design of the interface for safety-related communicationOther
Design of the switching outputRelay contact
Design of the electrical connectionCable
Rated control supply voltage Us at AC 50 Hz21.6 to 264 V
Rated control supply voltage Us at AC 60 Hz21.6 to 264 V
Rated control supply voltage Us at DC21.6 to 264 V
Width of the sensor18 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor50 mm
Length of the sensor50 mm
IP protection)IP64
Protection class (NEMA)Other
Voltage typeAC/DC
Ambient temperature-25 to 55 °C
Housing materialPlastic
