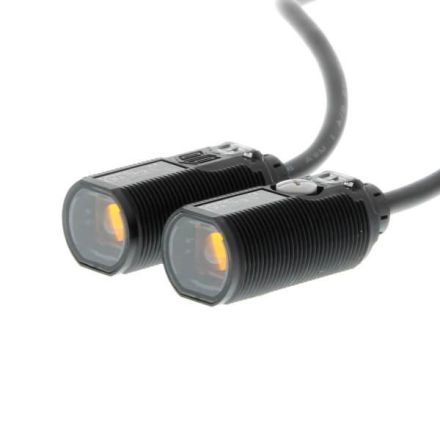

Photo switch, - PRO line, - one-way light barrier, - range 15m, - M18 plastic housing, - protection class IP69k, - light/dark switching via wiring, - NPN, 2 m
| Property | Value |
| Design of the switching output: | NPN |
| Rated switching distance: | 15000 mm |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. Output current: | 100 mA |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Length of sensor: | 41 mm |
| Width of sensor: | 15 mm |
| Height of sensor: | 18 mm |
| Diameter of sensor: | 18 mm |
| Design of interface for safety-related communication: | other |
| Explosion protection category for gas: | without |
| Design of the electrical connection: | cable |
| Laser protection class: | without |
| With INTERBUS communication interface: | no |
| With RS-485 communication interface: | no |
| With Ethernet communication interface: | no |
| Reflector included in delivery: | no |
| Max. Output current at the safe output: | 100 mA |
| Analog output 4 mA ... 20 mA: | no |
| Housing design: | Cylinder, thread |
| AWG number: | 26 |
| With communication interface SSD: | no |
| Pre-failure message: | no |
| With communication interface CANOpen: | no |
| With restart lock: | no |
| Analog output -10 V ... +10 V: | no |
| Housing material: | plastic |
| Analog output 0 V ... 10 V: | no |
| Light type: | infrared light |
| With analog communication interface: | no |
| With PROFIBUS communication interface: | no |
| Switching function design: | programmable/configurable |
| Safety type according to IEC 61496-1: | 1 |
| Explosion protection category for dust: | without |
| Opening angle: | 2 ° |
| Material of the optical surface: | Plastic |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Wavelength of the sensor: | 850 nm |
| Equipment protection class: | Protection class 3 |
| With communication interface RS-422: | no |
| Max. Switching distance: | 15000 mm |
| Switching frequency: | 1000 Hz |
| With communication interface AS-Interface: | no |
| Response time: | 0.5 ms |
| With other analog output: | no |
| With monitoring function of downstream devices: | no |
| Scope of delivery of the one-way system: | Transmitter and receiver |
| With communication interface RS-232: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| With communication interface SSI: | no |
| With communication interface DeviceNet: | no |
| Cable sheath material: | Polyvinyl chloride (PVC) |
| Ambient temperature: | -25 to 55 °C |
| Setting method: | manual setting |
| Type of voltage: | DC |
| With Time function: | no |
| Protection class (NEMA): | other |
