Rated operating current Ie at DC-13, 230 V0.4 A
Rated operating current Ie at DC-13, 125 V0.8 A
Electronic outputNo
Rated operating current Ie at AC-15, 125 V10 A

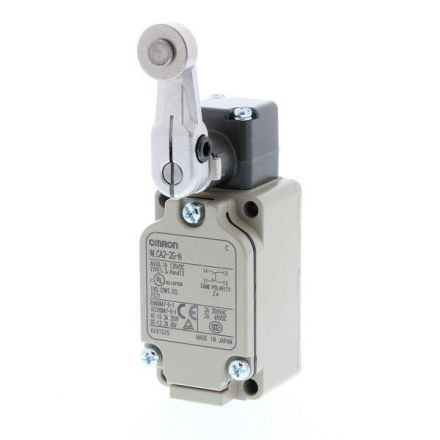

HABWLCA2-YN OMR
HAN392936
GTIN4548583485402
Number of contacts as normally open2
Number of contacts as opener2
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementRoller lever
Design of the electrical connectionCable entry (metric)
Alignment of the actuatorRoller tappet straight
Rated operating current Ie at AC-15, 230 V10A
Housing coatingOther
Width of the sensor40 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height of the sensor125 mm
Length of the sensor60 mm
With status displayNo
Switching functionSnap action contact
Switching function latchingNo
IP protection)IP67
Ambient temperature during operation-10 to 80 °C
Housing materialMetal
Forced openingNo
