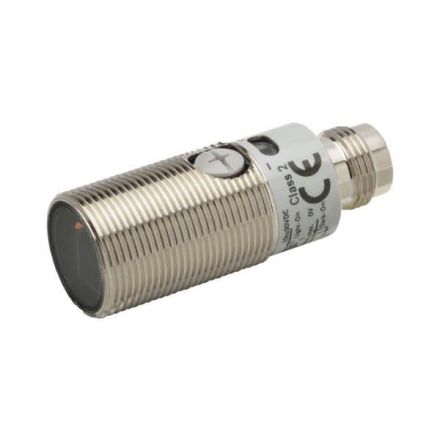

OMRON 415550 E3FB-TP21-D OMS photo switch

OMRON 415550 E3FB-TP21-D OMS photo switch

In stock

SKU: 610277

Price on request

€96.31

€0

Into a basketIn the basketGo

Overview

415550 E3FB-TP21-D OMS photo switch Manufacturer article number: 415550, Manufacturer article name: E3FB-TP21-D OMS

Property	Value
Design of the switching output:	PNP
Rated switching distance:	20000 mm
Rated control supply voltage Us at DC:	10 to 30 V
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP67
Length of sensor:	48 mm
Diameter of sensor:	18 mm
Design of interface for safety-related communication:	other
Explosion protection category for gas:	without
Design of electrical connection:	Connector M12
Laser protection class:	without
With communication interface INTERBUS:	no
With communication interface RS-485:	no
With communication interface Ethernet:	no
Reflector included in delivery:	no
Analog output 4 mA ... 20 mA:	no
Housing design:	Cylinder, thread
AWG number:	26
With communication interface SSD:	no
Pre-failure message:	no
With communication interface CANOpen:	no
With restart lock:	no
Analog output -10 V ... +10 V:	no
Housing material:	metal
Analog output 0 V ... 10 V:	no
Light type:	polarized red light
With analog communication interface:	no
With PROFIBUS communication interface:	no
Switching function design:	normally open contact (NO)
Explosion protection category for dust:	without
Opening angle:	2 °
Material of the optical surface:	plastic
Suitable for safety functions:	no
Analog output 0 mA ... 20 mA:	no
Sensor wavelength:	624 nm
Equipment protection class:	Protection class 3
With communication interface RS-422:	no
Max. Switching distance:	20000 mm
Switching frequency:	2000 Hz
With communication interface AS-Interface:	no
Response time:	0.5 ms
With other analog output:	no
With monitoring function of downstream devices:	no
Scope of delivery of the one-way system:	Receiver
With communication interface RS-232:	no
Number of semiconductor outputs with signaling function:	1
With communication interface SSI:	no
With communication interface DeviceNet:	no
Cable sheath material:	Polyvinyl chloride (PVC)
Ambient temperature:	-25 to 55 °C
Setting method:	manual setting
Type of voltage:	DC
With Time function:	no
Protection class (NEMA):	other

Characteristics

Diameter of the sensor18 mm

Design of the switching functionNormally open (NO)

Switching frequency2000 Hz

HABE3FB-TP21-D OMS

Manufacturer

HAN415550

GTIN4548583593671

Design of the interface for safety-related communicationOther

Design of the switching outputPNP

Design of the electrical connectionConnector M12

Rated control supply voltage Us at DC10 to 30 V

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCylinder, thread

Length of the sensor48 mm

IP protection)IP67

Protection class (NEMA)Other

Voltage typeDC

Ambient temperature-25 to 55 °C

Housing materialMetal
