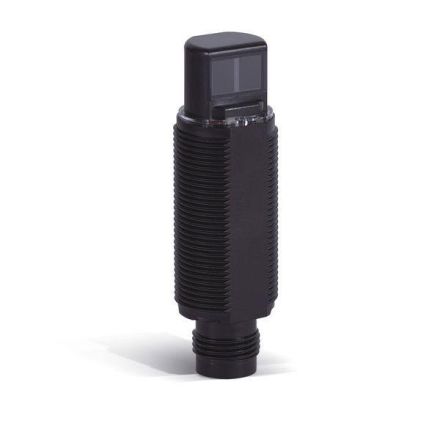

659022 E3RA-BP21-E015 OMS photo switch Manufacturer article number: 659022, Manufacturer article name: E3RA-BP21-E015 OMS
| Property | Value |
| Rated switching distance: | 500 mm |
| Max. switching distance: | 900 mm |
| Min. reflector distance: | 100 mm |
| Max. Output current: | 100 mA |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Length of sensor: | 58 mm |
| Diameter of sensor: | 18 mm |
| Reaction time: | 0.5 ms |
| Switching frequency: | 1000 Hz |
| Laser protection class: | without |
| Type of voltage: | DC |
| Material of the housing: | plastic |
| With communication interface SSI: | no |
| With communication interface AS-Interface: | no |
| With time function: | no |
| With communication interface DeviceNet: | no |
| Execution of the switching function: | programmable/configurable |
| With INTERBUS communication interface: | no |
| With analog communication interface: | no |
| With Ethernet communication interface: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With PROFIBUS communication interface: | no |
| Reflector included in delivery: | no |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | Red light polarized |
| Material of the optical surface: | Plastic |
| With communication interface RS-422: | no |
| Setting method: | manual setting |
| With communication interface RS-232: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| Design of the electrical connection: | Connector M12 |
| Design of the Switching output: | PNP |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cylinder, thread |
| Ambient temperature: | -25 to 55 °C |
| With monitoring function for downstream devices: | no |
| Pre-failure message: | no |
| Sensor wavelength: | 624 nm |
| With restart lock: | no |
