OMRON 659314 E2A-M30LN30-M1-B3 OMS proximity switch

OMRON 659314 E2A-M30LN30-M1-B3 OMS proximity switch

In stock

SKU: 611736

Price on request

€71.51

€0

Overview

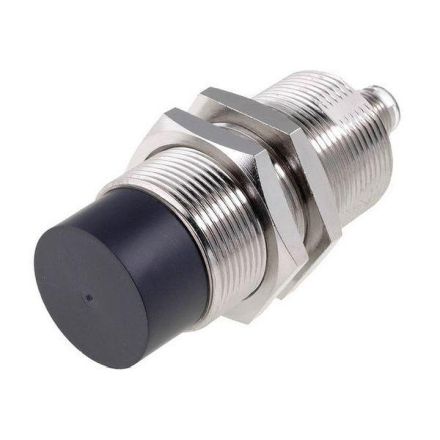

Proximity sensor, - inductive, switching distance Sn=30mm, not flush, - brass housing, cylindrical. M30, 80mm long, - 250Hz, 10..30VDC, 3-wire, PNP, 1S+1Ö, - 4-pin M12 connector on the housing, - double switching distance, - protection class: IP67 / IP69k, - approvals: CE

Property	Value
Switching distance:	30 mm
Type of voltage:	DC
Design of the switching output:	PNP
Mechanical installation condition for sensor:	not flush
Category according to EN 954-1:	B
Design of the interface:	without
Design of the switching function:	antivalent
Type of actuation:	metallic target
Switching frequency:	100 Hz
Length of the sensor:	80 mm
Pressure-resistant:	no
Rated control supply voltage Us at DC:	12 to 24 V
Suitable for safety functions:	no
Diameter of the sensor:	30 mm
Number of semiconductor outputs with signaling function:	1
Design of the interface for safety-related communication:	without
Design of the electrical connection:	M12 connector
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cylinder, thread
Housing coating:	nickel-plated
Cascadable:	yes
Max. Output current at the safe output:	200 mA
Supply voltage:	10 to 32 V
With monitoring function for downstream devices:	no
Housing material:	metal
SIL according to IEC 61508:	without
