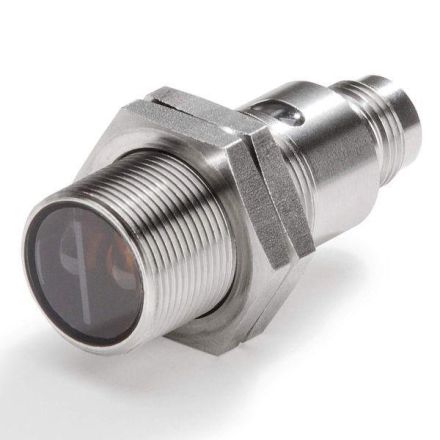

OMRON 659462 E3FC-DP26 OMS photo switch

OMRON 659462 E3FC-DP26 OMS photo switch

In stock

SKU: 610411

Price on request

€87.40

€0

Into a basketIn the basketGo

Overview

659462 E3FC-DP26 OMS photo switch Manufacturer article number: 659462, Manufacturer article name: E3FC-DP26 OMS

Property	Value
Desiring range:	10 to 1000 mm
Rated control supply voltage Us at DC:	10 to 30 V
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP67
Length of sensor:	48 mm
Width of sensor:	18 mm
Height of sensor:	18 mm
Diameter of sensor:	18 mm
With analog communication interface:	no
With communication interface RS-422:	no
Max. Switching distance:	1000 mm
Response time:	0.5 ms
Reflector included in delivery:	no
Analog output -10 V ... +10 V:	no
With Ethernet communication interface:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
With other analog output:	no
With SSI communication interface:	no
With monitoring function for downstream devices:	no
Analog output 0 V ... 10 V:	no
Sensor wavelength:	850 nm
With RS-232 communication interface:	no
With AS-Interface communication interface:	no
Number of semiconductor outputs with signaling function:	1
With restart lock:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
Design of the interface for safety-related communication:	other
With communication interface CANOpen:	no
Suitable for safety functions:	no
Design of the electrical connection:	M12 connector
Design of the switching output:	PNP
Design of the switching function:	programmable/configurable
Equipment protection class:	Protection class 3
Setting method:	manual setting
Explosion protection category for Gas:	without
Explosion protection category for dust:	without
Housing design:	Cylinder, thread
Laser protection class:	without
Light type:	Infrared light
Switching frequency:	2000 Hz
Voltage type:	DC
Ambient temperature:	-25 to 55 °C
Pre-failure warning:	no
Optical surface material:	Plastic
Housing material:	Metal
Protection class (NEMA):	other

Characteristics

Diameter of the sensor18 mm

Design of the switching functionProgrammable/configurable

Switching frequency2000 Hz

HABE3FC-DP26OMS

Manufacturer

HAN659462

GTIN4548583732872

Design of the interface for safety-related communicationOther

Design of the switching outputPNP

Design of the electrical connectionConnector M12

Rated control supply voltage Us at DC10 to 30 V

Width of the sensor18 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Housing designCylinder, thread

Height of the sensor18 mm

Length of the sensor48 mm

IP protection)IP67

Protection class (NEMA)Other

Voltage typeDC

Ambient temperature-25 to 55 °C

Housing materialMetal
