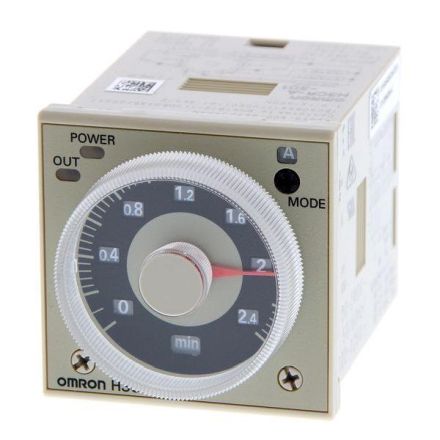

OMRON 667907 H3CR-AP AC24-48/DC12-48 OMI time relay

In stock

SKU: 613995

Price on request

€101.65

€0

Overview

Time relay, - 11-pin round base, front dimensions: 48x48mm², - 8 time functions, 3 voltage inputs, - time range: 0.05s..300h, SW: analog setting, - 2 time changers, - IP40 (front), - LR, UL, CSA, corresponds to EN61812-1

Property	Value
Number of outputs, delayed, changer:	2
Design of the electrical connection:	Plug-in connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	yes
Voltage type for actuation:	AC/DC
Time range:	0.05 to 1080000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 48 V
Rated control supply voltage Us at AC 60 Hz:	24 to 48 V
Rated control supply voltage Us at DC:	12 to 48 V
Width:	48 mm
Depth:	68 mm
Height:	48 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	no
Off-delayed function:	no
Passing switch function:	no
Function with flickering when switched off:	no
Function star/delta:	no
Function pulse forming:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	yes
With semiconductor output:	no
