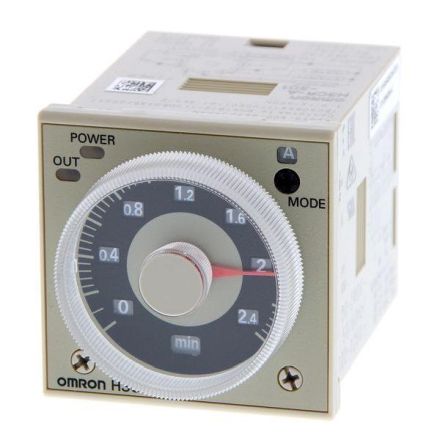

OMRON 667916 H3CR-A8E AC100-240/DC100- OMI time relay

In stock
SKU: 614004
€126.60
Into a basketIn the basketGo

Overview

Time relay, - 8-pin round base, front dimensions: 48x48mm², - 5 time functions, no inputs, - time range: 0.05s..300h, SW: analog setting, - 1 time changer + 1 instantaneous contact, - IP40 (front), - LR, UL, CSA, corresponds to EN61812-1

Property Value
Number of outputs, delayed, changer: 2
Design of the electrical connection: Plug-in connection
Can be plugged onto contactor: no
Outputs, switchable delayed/undelayed: yes
Voltage type for actuation: AC/DC
Time range: 0.05 to 1080000 s
Rated control supply voltage Us at AC 50 Hz: 100 to 240 V
Rated control supply voltage Us at AC 60 Hz: 100 to 240 V
Rated control supply voltage Us at DC: 100 to 125 V
Width: 48 mm
Depth: 68 mm
Height: 48 mm
With plug-in base: no
Remote control possible: no
Suitable as remote control: no
Delayed response function: no
Delayed release function: no
Function flickering on/off: no
flickering off function: no
star/delta function: no
pulse-forming function: no
flashing function starting with pause, fixed time: no
flashing function starting with pulse, fixed time: no
clocking function starting with pause, variable: no
clocking function starting with pulse, variable: yes
With semiconductor output: no

Characteristics

HABH3CR-A8E AC100-240/DC100-OMI
ManufacturerOMRON
HAN667916
GTIN4548583553330
Design of the electrical connectionPlug connection
Rated control supply voltage Us at AC 50 Hz100 to 240 V
Rated control supply voltage Us at AC 60 Hz100 to 240 V
Rated control supply voltage Us at DC100 to 125 V
Width48 mm
Remote control possibleNo
Height48 mm
Voltage type for actuationAC/DC
Depth68 mm
