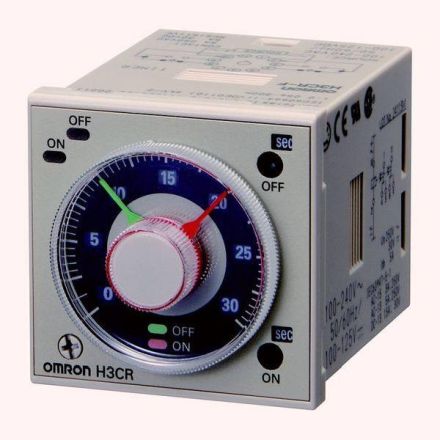

OMRON 667927 H3CR-FN AC24-48/DC12-48 OMI time relay

In stock
SKU: 614015
€134.32
Into a basketIn the basketGo

Overview

Time relay, - 11-pin round base, front dimensions: 48x48mm², - clock generator TI: separate pulse/pause times, - pulse start, - time range: 0.05s..300h, SW: analog setting, - 2 time changers, - IP40 (front), - LR, UL, CSA, corresponds to EN61812-1

Property Value
Number of outputs, delayed, changer: 2
Design of the electrical connection: Plug connection
Can be plugged onto contactor: no
Outputs, switchable delayed/undelayed: no
Type of voltage for actuation: AC/DC
Time range: 0.05 to 1080000 s
Rated control supply voltage Us at AC 50 Hz: 24 to 48 V
Rated control supply voltage Us at AC 60 Hz: 24 to 48 V
Rated control supply voltage Us at DC: 12 to 48 V
Width: 48 mm
Depth: 70 mm
Height: 48 mm
With plug-in base: yes
Remote control possible: no
Suitable as remote control: no
On-delay function: no
Off-delay function: no
Function with flickering when switched on: no
Function with flickering when switched off: no
Function with star/delta: no
Function with pulse shaping: no
Function with flashing starting with pause, fixed time: no
Function with flashing starting with pulse, fixed time: no
Function with clocking starting with pause, variable: no
Function with clocking starting with pulse starting, variable: no
With semiconductor output: no

Characteristics

HABH3CR-FN AC24-48/DC12-48 OMI
ManufacturerOMRON
HAN667927
GTIN4548583552876
Design of the electrical connectionPlug connection
Rated control supply voltage Us at AC 50 Hz24 to 48 V
Rated control supply voltage Us at AC 60 Hz24 to 48 V
Rated control supply voltage Us at DC12 to 48 V
Width48 mm
Remote control possibleNo
Height48 mm
Voltage type for actuationAC/DC
Depth70 mm
