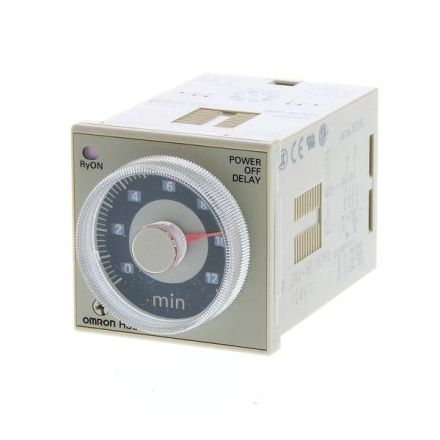

OMRON 667933 H3CR-H8L AC100-120 S OMI time relay

In stock

SKU: 614021

Price on request

€94.48

€0

Overview

Time relay, - 8-pin round base, front dimensions: 48x48mm², - Delayed release, without auxiliary voltage, - 0.05sec..12sec, - 2 time changeover contacts, - IP40 (front), - LR, UL, CSA, corresponds to EN61812-1

Property	Value
Number of outputs, delayed, changeover contact:	2
Design of the electrical connection:	Plug connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC
Time range:	0.05 to 12 s
Rated control supply voltage Us at AC 50 Hz:	100 to 120 V
Rated control supply voltage Us at AC 60 Hz:	100 to 120 V
Width:	48 mm
Depth:	79 mm
Height:	48 mm
With plug-in base:	yes
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	no
Off-delayed function:	yes
Swift-on function:	no
Swift-off function:	yes
Function star/delta:	no
Function pulse forming:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no

Characteristics

HABH3CR-H8L AC100-120 S OMI

Manufacturer

HAN667933

GTIN4548583553019

Design of the electrical connectionPlug connection

Rated control supply voltage Us at AC 50 Hz100 to 120 V

Rated control supply voltage Us at AC 60 Hz100 to 120 V

Width48 mm

Remote control possibleNo

Height48 mm

Voltage type for actuationAC

Depth79 mm

OMRON 667933 H3CR-H8L AC100-120 S OMI time relay

Price on request

€94.48

€0

Into a basketIn the basketGo
