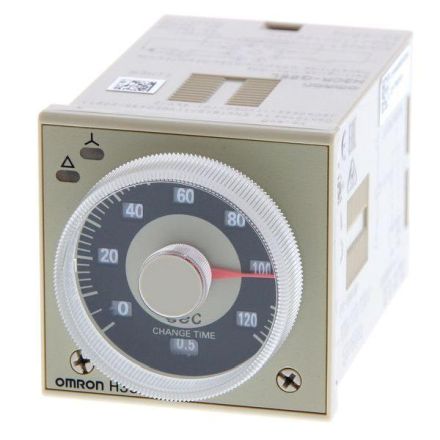

OMRON 667941 H3CR-G8EL AC100-120 OMI time relay

In stock

SKU: 614029

Price on request

€130.13

€0

Overview

Time relay, - 8-pin round base, front dimensions: 48x48mm², - star/delta, SW: analog setting, - star: 0.5s..120s, switching: 0.05s..0.5s, - 1 time changer + 1 instantaneous contact, - IP40 (front), - LR, UL, CSA, corresponds to EN61812-1

Property	Value
Number of outputs, undelayed, normally open:	1
Number of outputs, delayed, normally open:	2
Design of the electrical connection:	Plug connection
Can be plugged into contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC
Time range:	0.5 to 120 s
Rated control supply voltage Us at AC 50 Hz:	100 to 120 V
Rated control supply voltage Us at AC 60 Hz:	100 to 120 V
Width:	48 mm
Depth:	79.4 mm
Height:	48 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	no
Off-delay function:	no
Function with flickering when switched on:	no
Function with flickering when switched off:	no
Function star/delta:	yes
Function pulse forming:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	yes
