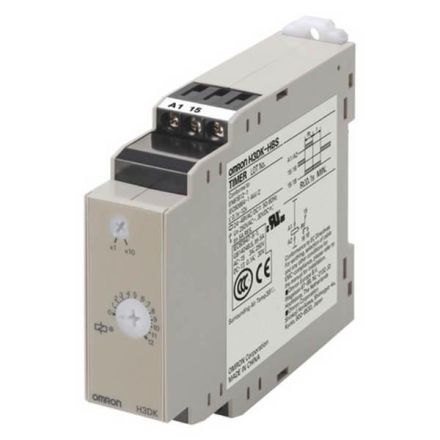

OMRON 668587 H3DK-HCS AC100-120V OMI time relay

In stock

SKU: 614053

Price on request

€86.23

€0

Overview

Time relay, - 22.5mm wide, switching output: 1 W, - OFF-delayed, without auxiliary voltage, - 0.1s..12s, SW: analog setting, - IP30, terminals IP20, - UL, CSA, LR, CCC, corresponds to EN61812-1

Property	Value
Number of outputs, delayed, changeover contact:	1
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC
Time range:	0.1 to 120 s
Rated control supply voltage Us at AC 50 Hz:	100 to 120 V
Rated control supply voltage Us at AC 60 Hz:	100 to 120 V
Width:	22.5 mm
Depth:	100 mm
Height:	79 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Delayed response function:	no
Delayed release function:	yes
Swift on-switch function:	no
Swift off-switch function:	yes
Function Star/delta:	no
Pulse-forming function:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
