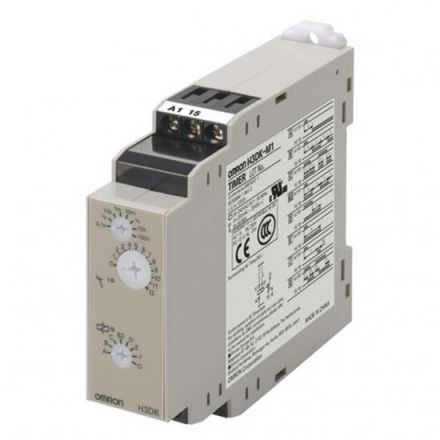

OMRON 668642 H3DK-M1 AC/DC24-240 OMI time relay

In stock

SKU: 614081

Price on request

€75.85

€0

Overview

Multifunction time relay, - 22.5mm wide, switching output: 1 W, - 8 time functions, start input, - 0.1s..1200h, SW: analog setting, - IP30, terminals IP20, - UL, CSA, LR, CCC, corresponds to EN61812-1

Property	Value
Number of outputs, delayed, changeover:	1
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC/DC
Time range:	0.1 to 4320000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	22.5 mm
Depth:	100 mm
Height:	79 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Delayed response function:	yes
Delayed release function:	yes
Function switch-on flicker:	yes
switch-off flicker:	yes
star/delta function:	no
pulse-forming function:	no
flashing function starting with pause, fixed time:	no
flashing function starting with pulse, fixed time:	yes
clocking function starting with pause, variable:	no
clocking function starting with pulse, variable:	yes
With semiconductor output:	no

Characteristics

HABH3DK-M1 AC/DC24-240 OMI

Manufacturer

HAN668642

GTIN4548583744967

Design of the electrical connectionScrew connection

Rated control supply voltage Us at AC 50 Hz24 to 240 V

Rated control supply voltage Us at AC 60 Hz24 to 240 V

Rated control supply voltage Us at DC24 to 240 V

Width22.5 mm

Remote control possibleNo

Height79 mm

Voltage type for actuationAC/DC

Depth100 mm
