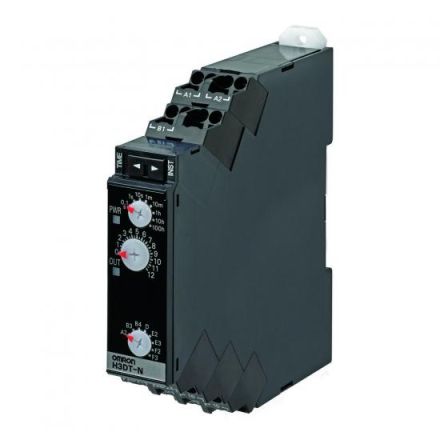

OMRON 669448 H3DT-N2 AC/DC24-240 time relay

In stock

SKU: 614083

Price on request

€81.98

€0

Overview

Time relay, DIN rail mounting, 17.5mm, multifunction, 0.1s-1200h, 2 changeover contacts, 5A, 24-240V AC/DC, push-in

Property	Value
Number of outputs, undelayed, normally closed:	1
Number of outputs, undelayed, normally open:	1
Number of outputs, undelayed, changeover:	1
Number of outputs, delayed, normally closed:	2
Number of outputs, delayed, normally open:	2
Number of outputs, delayed, changeover:	2
Design of the electrical connection:	Spring-loaded connection
Can be plugged into contactor:	no
Outputs, switchable delayed/undelayed:	yes
Type of voltage for actuation:	AC/DC
Time range:	0.1 to 4320000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	17.5 mm
Depth:	90 mm
Height:	90 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	yes
Off-delayed function:	no
On-flicker function:	yes
Off-flicker function:	no
Star/delta function:	no
Function Pulse forming:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no

HABH3DT-N2 AC/DC24-240

Manufacturer

HAN669448

GTIN4548583773318

Design of the electrical connectionSpring-loaded connection

Rated control supply voltage Us at AC 50 Hz24 to 240 V

Rated control supply voltage Us at AC 60 Hz24 to 240 V

Rated control supply voltage Us at DC24 to 240 V

Width17.5 mm

Remote control possibleNo

Height90 mm

Voltage type for actuationAC/DC

Depth90 mm

OMRON 669448 H3DT-N2 AC/DC24-240 time relay

Price on request

€81.98

€0
