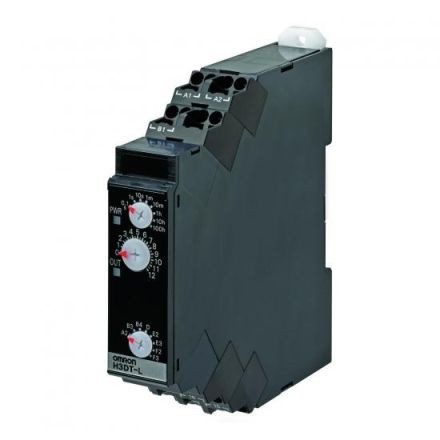

OMRON 669519 H3DT-L1 AC/DC24-240 time relay

In stock
SKU: 614095
€81.98
Into a basketIn the basketGo

Overview

Time relay, DIN rail mounting, 17.5mm, extended multifunction, 0.1s-1200h, 1 changeover contact, 5A, 24-240V AC/DC, push-in

Property Value
Number of outputs, delayed, normally closed: 1
Number of outputs, delayed, normally open: 1
Number of outputs, delayed, changeover: 1
Design of the electrical connection: Spring-loaded connection
Can be plugged onto Contactor: no
Outputs, switchable delayed/undelayed: no
Type of voltage for actuation: AC/DC
Time range: 0.1 to 4320000 s
Rated control supply voltage Us at AC 50 Hz: 24 to 240 V
Rated control supply voltage Us at AC 60 Hz: 24 to 240 V
Rated control supply voltage Us at DC: 24 to 240 V
Width: 17.5 mm
Depth: 90 mm
Height: 90 mm
With plug-in base: no
Remote control possible: no
Suitable as remote control: no
Function with response delay: yes
Function off-delayed: no
Function with flicker-on contact: yes
Function with flicker-off contact: no
Function star/delta: no
Function pulse-forming: no
Function flashing starting with pause, fixed time: no
Function flashing starting with pulse, fixed time: yes
Function clocking starting with pause, variable: no
Function clocked starting with pulse, variable: no
With semiconductor output: no

Characteristics

HABH3DT-L1 AC/DC24-240
ManufacturerOMRON
HAN669519
GTIN4548583773349
Design of the electrical connectionSpring-loaded connection
Rated control supply voltage Us at AC 50 Hz24 to 240 V
Rated control supply voltage Us at AC 60 Hz24 to 240 V
Rated control supply voltage Us at DC24 to 240 V
Width17.5 mm
Remote control possibleNo
Height90 mm
Voltage type for actuationAC/DC
Depth90 mm
