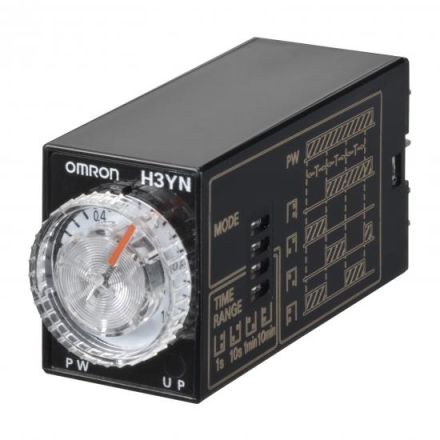

OMRON 669610 H3YN-21-B DC48 time relay

In stock

SKU: 614112

Price on request

€56.76

€0

Overview

Time relay, pluggable, 8-pin, multifunction, 0.1m-10h, 2 changeover contacts, 5A, 48VDC control, black

Property	Value
Number of outputs, delayed, normally closed:	2
Number of outputs, delayed, normally open:	2
Number of outputs, delayed, changeover:	2
Design of the electrical connection:	Plug connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	DC
Time range:	6 to 36000 s
Rated control supply voltage Us at DC:	48 V
Width:	21.5 mm
Depth:	56.6 mm
Height:	28 mm
With Plug-in base:	yes
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	yes
Off-delay function:	no
Swift-on function:	yes
Swift-off function:	no
Star/delta function:	no
Pulse-forming function:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
