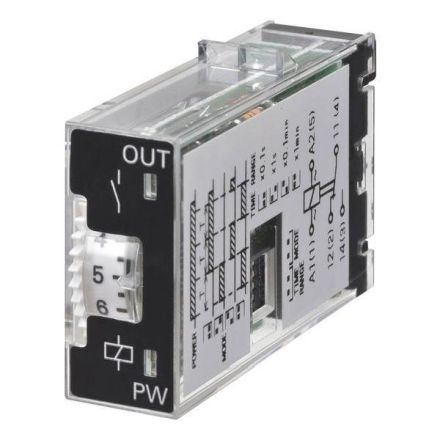

OMRON 669641 H3RN-11-B DC24 time relay

In stock

SKU: 614135

Price on request

€68.76

€0

Overview

Time relay, pluggable, 5-pin, multifunction, 0.1m-10h, 1 changeover contact, 3A, 24VDC control, black

Property	Value
Number of outputs, delayed, normally closed:	1
Number of outputs, delayed, normally open:	1
Number of outputs, delayed, changeover:	1
Design of the electrical connection:	Plug connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	DC
Time range:	6 to 36000 s
Rated control supply voltage Us at DC:	24 V
Width:	12.8 mm
Depth:	47.2 mm
Height:	31.2 mm
With plug-in base:	yes
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	yes
Off-delay function:	no
Swift-on function:	yes
Swift-off function:	no
Star/delta function:	no
Function pulse forming:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
