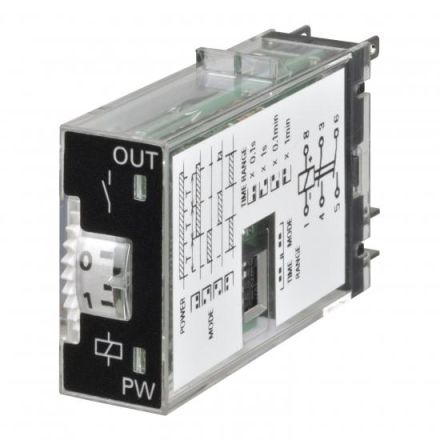

OMRON 669648 H3RN-21-B AC24 time relay

In stock

SKU: 614142

Price on request

€50.30

€0

Overview

Time relay, pluggable, 8-pin, multifunction, 0.1m-10h, 1 make contact, 3A, 24VAC control, black

Property	Value
Number of outputs, delayed, make contact:	2
Design of the electrical connection:	Plug connection
Can be plugged into contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC
Time range:	6 to 36000 s
Rated control supply voltage Us at AC 50 Hz:	24 V
Rated control supply voltage Us at AC 60 Hz:	20.4 to 26.4 V
Width:	12.8 mm
Depth:	47.2 mm
Height:	31.2 mm
With plug-in base:	yes
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	yes
Off-delayed function:	no
On-flicker function:	no
Off-flicker function:	no
Star/delta function:	no
Pulse-forming function:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
