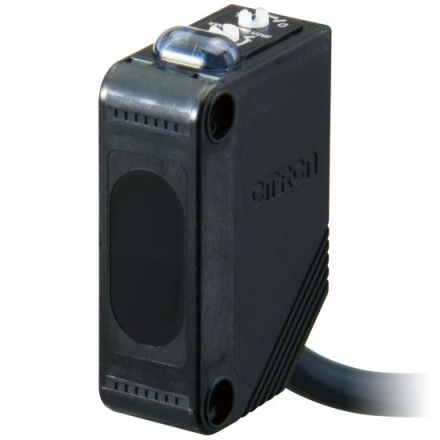

Photo switch, - light sensor, - switching distance 1m, - infrared LED, - PNP, - IO-Link COM2, - 2m cable, - IP67
| Property | Value |
| Scanning range: | 0 to 1000 mm |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. Output current: | 100 mA |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Length of sensor: | 20 mm |
| Width of sensor: | 10.8 mm |
| Height of sensor: | 31 mm |
| With analog communication interface: | no |
| With RS-422 communication interface: | no |
| Max. Sensing distance: | 1000 mm |
| Max. Output current at the safe output: | 100 mA |
| Response time: | 1 ms |
| Reflector included in delivery: | no |
| Analog output -10 V ... +10 V: | no |
| With Ethernet communication interface: | no |
| Analog output 0 mA ... 20 mA: | no |
| With SSD communication interface: | no |
| AWG number: | 24 |
| With other analog output: | no |
| With SSI communication interface: | no |
| With monitoring function for downstream devices: | no |
| Analog output 0 V ... 10 V: | no |
| Sensor wavelength: | 860 nm |
| With RS-232 communication interface: | no |
| With AS-Interface communication interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| With restart lock: | no |
| Analog output 4 mA ... 20 mA: | no |
| With communication interface PROFIBUS: | no |
| With communication interface RS-485: | no |
| With communication interface DeviceNet: | no |
| With communication interface INTERBUS: | no |
| Design of the interface for safety-related communication: | other |
| With communication interface CANOpen: | no |
| Suitable for safety functions: | no |
| Design of the electrical connection: | cable |
| Design of the switching output: | PNP |
| Design of the switching function: | programmable/configurable |
| Equipment protection class: | Protection class 2 |
| Setting method: | manual setting |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Laser protection class: | without |
| Light type: | Infrared light |
| Switching frequency: | 1000 Hz |
| Voltage type: | DC |
| Ambient temperature: | -25 to 55 °C |
| Pre-failure warning: | yes |
| Material of the optical surface: | Plastic |
| Material of the housing: | Plastic |
| Material of the cable sheath: | Polyvinyl chloride (PVC) |
| With time function: | yes |
| Protection class (NEMA): | other |
