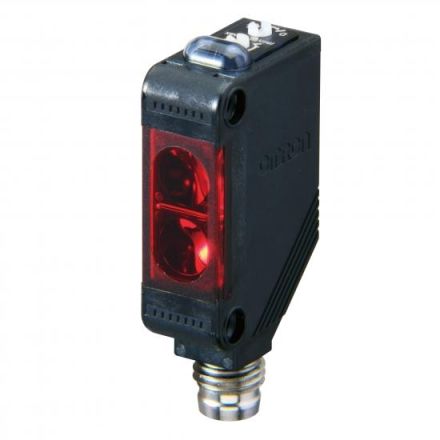

Photo switch, - reflection light barrier, - switching distance 4m, - red LED, - PNP, - IO-Link COM3, - M8 connector, - IP67
| Property | Value |
| Rated switching distance: | 4000 mm |
| Max. switching distance: | 4000 mm |
| Min. reflector distance: | 100 mm |
| Max. Output current: | 100 mA |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Height of sensor: | 31 mm |
| Width of sensor: | 10.8 mm |
| Length of sensor: | 20 mm |
| Reaction time: | 1 ms |
| Switching frequency: | 1000 Hz |
| Laser protection class: | without |
| Type of voltage: | DC |
| Material of the housing: | Plastic |
| With communication interface SSI: | no |
| With communication interface AS-Interface: | no |
| With time function: | yes |
| With communication interface DeviceNet: | no |
| Switching function execution: | programmable/configurable |
| With INTERBUS communication interface: | no |
| With analog communication interface: | no |
| With Ethernet communication interface: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With PROFIBUS communication interface: | no |
| Reflector included in delivery: | no |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | polarized red light |
| Material of the optical surface: | plastic |
| With RS-422 communication interface: | no |
| Setting method: | manual setting |
| With RS-232 communication interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| Design of the interface for safety-related communication: | other |
| Design of the electrical connection: | M8 connector |
| Design of the switching output: | PNP |
| Equipment protection class: | Protection class 3 |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Ambient temperature: | -25 to 55 °C |
| With monitoring function of downstream devices: | no |
| Pre-failure warning: | yes |
| Wavelength of the sensor: | 660 nm |
| With restart lock: | no |
| Protection class (NEMA): | other |
