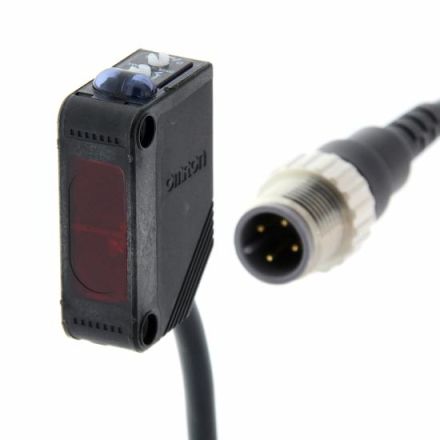

OMRON 671222 E3Z-D82-M1TJ-IL3 0.3M OMS Photoswitch

OMRON 671222 E3Z-D82-M1TJ-IL3 0.3M OMS Photoswitch

In stock

SKU: 610521

Price on request

€163.98

€0

Overview

Photo switch, - IO-Link V1.1 COM3 (230.4 kbps, 1 ms), - reflection photoelectric sensor, scanning range 1000 mm, - PBT housing, cuboid 20x11x31 mm, - IR 860 nm, 1 ms, 10..30 VDC, PNP, LON/DON, - M12 connector on 0.3 m PVC cable, - Protection class: IP67

Property	Value
Scanning range:	0 to 1000 mm
Rated control supply voltage Us at DC:	10 to 30 V
Max. Output current:	100 mA
Button function:	light/dark switching
Protection class (IP):	IP67
Length of sensor:	20 mm
Width of sensor:	10.8 mm
Height of sensor:	31 mm
With analog communication interface:	no
With RS-422 communication interface:	no
Max. Sensing distance:	1000 mm
Max. Output current at the safe output:	100 mA
Response time:	1 ms
Reflector included in delivery:	no
Analog output -10 V ... +10 V:	no
With Ethernet communication interface:	no
Analog output 0 mA ... 20 mA:	no
With SSD communication interface:	no
AWG number:	23
With other analog output:	no
With SSI communication interface:	no
With monitoring function for downstream devices:	no
Analog output 0 V ... 10 V:	no
Sensor wavelength:	860 nm
With RS-232 communication interface:	no
With AS-Interface communication interface:	no
Number of semiconductor outputs with signaling function:	1
With restart lock:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
With communication interface RS-485:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
Design of the interface for safety-related communication:	other
With CANOpen communication interface:	no
Suitable for safety functions:	no
Design of the electrical connection:	Cable with connector
Design of the switching output:	PNP
Design of the switching function:	programmable/configurable
Equipment protection class:	Protection class 3
Setting method:	manual setting
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Laser protection class:	without
Light type:	Infrared light
Switching frequency:	1000 Hz
Voltage type:	DC
Ambient temperature:	-25 to 55 °C
Pre-failure warning:	yes
Material of the optical surface:	Plastic
Material of the housing:	Plastic
Material of the cable sheath:	Polyvinyl chloride (PVC)
With time function:	yes
Protection class (NEMA):	other
