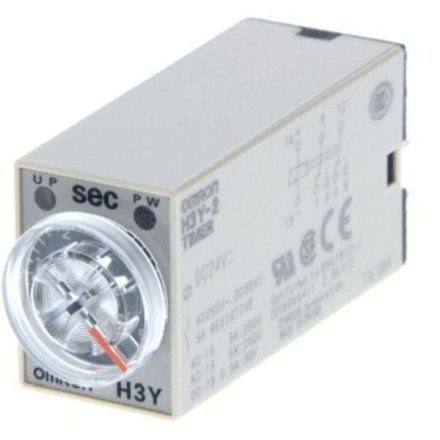

OMRON 671566 H3Y-4 AC200-230 60S OMI time relay

In stock

SKU: 614175

Price on request

€110.01

€0

Overview

Time relay- 11-pin round base, front dimensions: 48x48mm²- 8 time functions, 3 inputs, open collector- Time range: 0.05s..300h, SW: analog setting- 2 time changers- IP40 (front)- LR, UL, CSA, corresponds to EN61812-1

Property	Value
Number of outputs, delayed, changer:	4
Design of the electrical connection:	Flat plug connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC
Time range:	2.0 to 60 s
Rated control supply voltage Us at AC 50 Hz:	200 to 230 V
Rated control supply voltage Us at AC 60 Hz:	200 to 230 V
Width:	21.5 mm
Depth:	52.6 mm
Height:	28 mm
With plug-in base:	yes
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	no
Off-delayed function:	no
On-flicker function:	no
Off-flicker function:	no
Star/delta function:	no
Pulse-forming function:	no
Flashing function starting with pause, fixed time:	no
Flashing function starting with pulse, fixed time:	no
Clocking function starting with pause, variable:	no
Clocking function starting with pulse, variable:	no
With semiconductor output:	no

Characteristics

HABH3Y-4 AC200-230 60S OMI

Manufacturer

HAN671566

GTIN4548583754317

Design of the electrical connectionFlat plug connection

Rated control supply voltage Us at AC 50 Hz200 to 230 V

Rated control supply voltage Us at AC 60 Hz200 to 230 V

Width21.5 mm

Remote control possibleNo

Height28 mm

Voltage type for actuationAC

Depth52.6 mm
