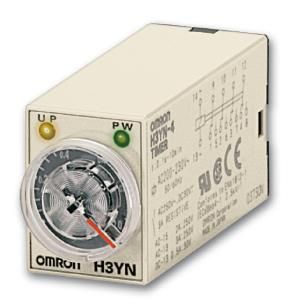

OMRON 671695 H3YN-4 DC24 OMI time relay

In stock
SKU: 614304
€71.60
Into a basketIn the basketGo

Overview

Time relay, - multifunction, socketable, MY4 pinning, 4 W, - 4 time functions: AV, EW, TI, TP, - time range adjustable: 0, 1s..10min, - function/time range selectable via DIP switch, - IP40, - LR, UL, CSA, conforms to EN61812-1

Property Value
Number of outputs, delayed, changeover: 4
Design of the electrical connection: Flat plug connection
Can be plugged onto contactor: no
Outputs, switchable delayed/undelayed: no
Voltage type for actuation: DC
Time range: 6 to 36000 s
Rated control supply voltage Us at DC: 24 V
Width: 21.5 mm
Depth: 52.6 mm
Height: 28 mm
With plug-in base: yes
Remote control possible: no
Suitable as remote control: no
On-delayed function: no
Off-delayed function: no
On-flicker function: no
Off-flicker function: no
Star/delta function: no
Pulse-forming function: no
Function flashing starting with pause, fixed time: no
Function flashing starting with pulse, fixed time: no
Function clocking starting with pause, variable: no
Function clocking starting with pulse, variable: no
With semiconductor output: no

Characteristics

HABH3YN-4 DC24 OMI
ManufacturerOMRON
HAN671695
GTIN4548583755512
Design of the electrical connectionFlat plug connection
Rated control supply voltage Us at DC24V
Width21.5 mm
Remote control possibleNo
Height28 mm
Voltage type for actuationDC
Depth52.6 mm
