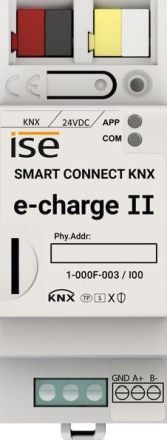

Please check before commissioning whether a new update is available and install it if necessary. Thanks to Dynamic Load Management (DLM) Despite peak consumers, charging is now possible even with a small house connection, The available power is distributed between the charging points, the house connection is not overloaded, Coordinate up to five charging points from different manufacturers per gateway and prioritize a specific charging point, The integrated Modbus RTU/ASCII connection eliminates the need for an additional USB adapter, This saves space in the control cabinet, as only 2 TE are required - Configuration completely via the ETS - Ecological, economical or individual charging Control the charging times via KNX, You would like to know whether and how many cars are being charged or connected to your charging stations, Have this information conveniently displayed via KNX - where you want, how you want, Nominal voltage: DC 24 V to 30 V, Power consumption: 2.3 W, IP communication: Ethernet 10/100 BaseT, KNX communication: KNX/TP, S-Mode, KNX medium: TP1-256, microSD card: up to 32 GB (SDHC), connections: 2x RJ45 (integrated switch), connection and branch terminals for KNX and 24 V, RS485: screw terminal, 3-pin (GND, A+, B-) Ambient temperature: 0°C to +45°C, dimensions: 2 TE (REG plus)
