SolarEdge Technologies SE-EVK22C00-01 SOLAREDGE Home EV Charger 22kW 6m Type2 Cable

In stock

SKU: 954166

Price on request

€1,691.05

€0

Overview

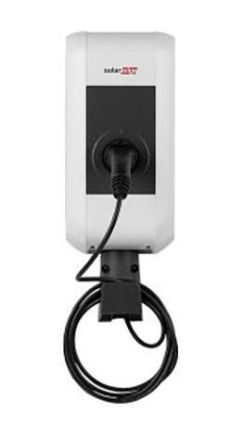

SOLAREDGE Home EV Charger 22kW 6m Type2 cable

SolarEdge charging station, 22 kW, 6 m cable, Type 2, charging solution with seamless integration into the SolarEdge Home ecosystem, uses excess PV energy to charge EVs, control and monitoring via the mySolarEdge app (remote control, charging plans and charging history), OCPP compatible.

Protection class (IP)	IP54
Impact resistance	IK10
Width	240 mm
Housing material	Plastic
Weight	7.8
Weight unit	KG
Mounting type	Wall mounting
Height	643 mm
Depth	142 mm
Number of charging points	1
Max. Power per charging point	22 kW
Length of charging cable	6 m
System side connection design	3-phase
Nominal connected load	22 kW
Input voltage	230 - 400 V
Frequency	50 Hz
Connectable conductor cross-section	16 - 2.5 mm²
Number of charging couplings type 2	1
Can be connected via WLAN	yes
DC fault current detection	yes
Export of charging history	yes
Can be connected via LAN	yes
Integrated static load management	yes
Suitable for dynamic load management	yes
Backend included in delivery	yes
Operation and configuration via app	yes
