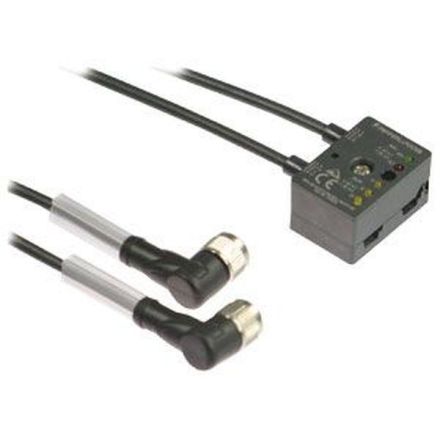

Pepperl & Fuchs 216025 VBA-2E1A-G10-ZAL/E2L-1M-2V1-W AS-i compact module

Pepperl & Fuchs 216025 VBA-2E1A-G10-ZAL/E2L-1M-2V1-W AS-i compact module

In stock

SKU: 614845

Price on request

€133.55

€0

Overview

G10 ultra-compact module 2 inputs and 1 output, AS-Interface specification: V3.0, voltage: (UAUX - 0.5 V), voltage: 20 ... 30 V, protection class: IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*, protection class: EN 60529:2000

Property	Value
Protection class (IP):	IP67
Type of supply voltage:	DC
Width:	27.7 mm
Height:	21.5 mm
Depth:	40.5 mm
Deck mounting possible:	no
Type of digital output:	other
Wireless standard WLAN 802.11:	no
Supports protocol for INTERBUS:	no
Supports protocol for PROFIBUS:	no
Supports protocol for ASI:	yes
Rack mounting possible:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIsafe:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Data-Highway:	no
Supports protocol for SafetyBUS p:	no
IO-Link Master:	no
Supports protocol for MODBUS:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for SUCONET:	no
Front installation possible:	no
Supports protocol for TCP/IP:	no
Type of output voltage:	DC
Supports protocol for CAN:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	no
With optical interface:	no
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Radio standard GSM:	no
Number of digital Inputs:	2.000000
Wireless standard GPRS:	no
Number of digital outputs:	1.000000
Wireless standard UMTS:	no
