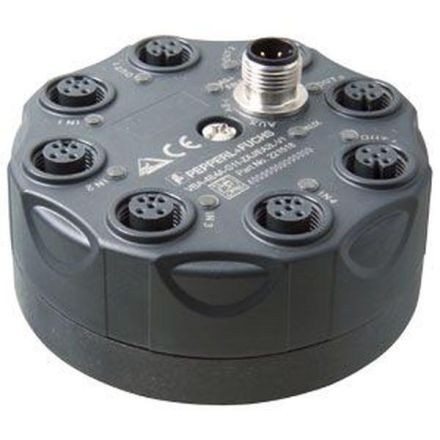

Pepperl & Fuchs 221518 VBA-4E4A-G11-ZAJ/EA2L-V1 AS-Interface module

Pepperl & Fuchs 221518 VBA-4E4A-G11-ZAJ/EA2L-V1 AS-Interface module

In stock

SKU: 614916

Price on request

€280.34

€0

Overview

G11 module 4 inputs and 4 outputs, AS-Interface specification: V3.0, voltage: (UAUX - 0.5 V), voltage: 12 ... 31 V, protection class: IP68 / IP69K, protection class: EN 60529:2000, fastening: mounting plate

Property	Value
Protection class (IP):	IP68
Type of supply voltage:	DC
Height:	35 mm
Mounting rail mounting possible:	no
Type of digital output:	other
Wireless standard WLAN 802.11:	no
Supports protocol for INTERBUS:	no
Supports protocol for PROFIBUS:	no
Supports protocol for ASI:	yes
Rack mounting possible:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIsafe:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for Data-Highway:	no
Supports protocol for SafetyBUS p:	no
IO-Link Master:	no
Supports protocol for MODBUS:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for SUCONET:	no
Front installation possible:	no
Supports protocol for TCP/IP:	no
Type of output voltage:	DC
Supports protocol for CAN:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	no
With optical interface:	no
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Wireless standard GSM:	no
Number of digital inputs:	4,000,000
Wireless standard GPRS:	no
Number of digital outputs:	4.000000
Radio standard UMTS:	no
