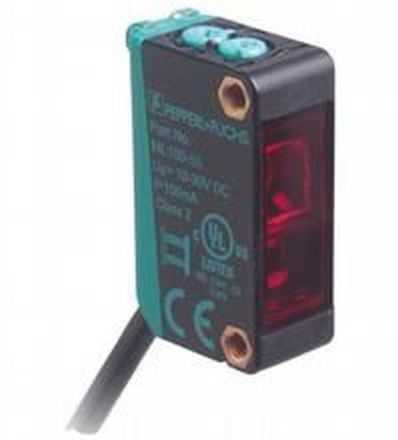

Pepperl & Fuchs 254774 ML100-6-IR/33/102/115 reflective photoelectric sensor

Pepperl & Fuchs 254774 ML100-6-IR/33/102/115 reflective photoelectric sensor

In stock

SKU: 617656

Price on request

€104.66

€0

Overview

Operating range: 0 ... 5 m, light transmitter: IRED, light type: infrared, alternating light, signal output: 1 NPN output, short-circuit proof, reverse polarity protected, open collector, switching type: the switching type of the sensor can be switched. The delivery state is: light switching, connection: fixed cable, operating voltage: 10 ... 30 V DC, ambient temperature: -30 ... 60 °C (-22 ... 140 °F)

Property	Value
Max. Switching distance:	7000.000000 mm
Height of the sensor:	31.000000 mm
Width of the sensor:	11.000000 mm
Length of the sensor:	20.000000 mm
Type of voltage:	DC
Material of the housing:	Plastic
With communication interface SSI:	no
With communication interface AS-Interface:	no
With time function:	no
With communication interface DeviceNet:	no
With communication interface INTERBUS:	no
With communication interface Analog:	no
With communication interface Ethernet:	no
Analog output 4 mA ... 20 mA:	no
With communication interface PROFIBUS:	no
Reflector included in delivery:	no
Analog output 0 mA ... 20 mA:	no
Analog output -10 V ... +10 V:	no
With communication interface SSD:	no
With communication interface CANOpen:	no
With communication interface RS-485:	no
Analog output 0 V ... 10 V:	no
Light type:	Infrared light
Material of the optical surface:	Plastic
With communication interface RS-422:	no
With communication interface RS-232:	no
Design of the electrical connection:	Cable
Design of the switching output:	NPN
Housing design:	Cuboid
Pre-failure notification:	no
