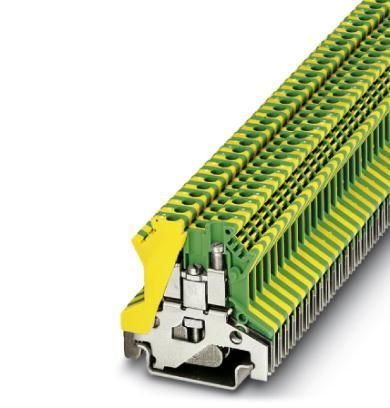

Phoenix Contact 0441119 USLKG 2.5 N PE protective conductor terminal

In stock

SKU: 560172

Price on request

€4.59

€0

Overview

Protective conductor terminal block, connection type: screw connection, number of connections: 2, number of poles: 1, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, width: 5.2 mm, color: green-yellow, mounting type: NS 35/7.5, NS 35/15, NS 32

Property	Value
Width/grid dimension:	5.2 mm
Length:	42.5 mm
Height with lowest mounting type:	42 mm
Operating temperature:	-60 to 105 °C
Connectable conductor cross-section, single-wire:	0.2 to 4 mm²
Connectable conductor cross-section, multi-wire:	0.2 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.2 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 1.5 mm²
PEN function possible:	no
Version Electrical connection 1:	Screw connection
Design of electrical connection 2:	Screw connection
Number of levels:	1
Number of terminal points per level:	2
Color:	other
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Material of the insulating body:	other
