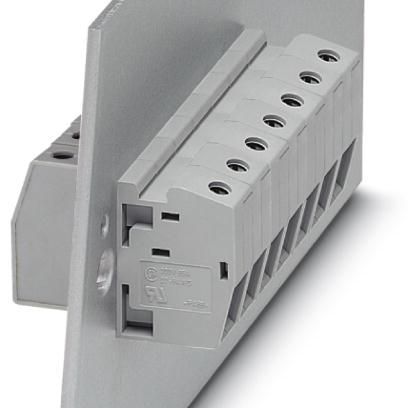

Phoenix Contact 0707073 707073 HDFK 10 screw 76A 0.5-16qmm feed-through terminal

In stock

SKU: 560669

Price on request

€3.99

€0

Overview

Feed-through terminal, connection type: screw connection with tension sleeve, screw connection with tension sleeve, number of poles: 1, load current: 57 A, cross-section: 0.5 mm² - 16 mm², connection direction of the conductor to the plug-in direction: 0 °, width: 10.1 mm, color: gray

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 16 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	10 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 10 mm²
Connectable conductor cross-section, stranded:	0.5 to 10 mm²
Connection position:	side
Rated current In:	57 A
Rated voltage:	400 V
Design of electrical connection 1:	screw connection
Design of electrical connection 2:	screw connection
Number of terminal points per pole:	2
Mounting type:	Direct mounting
Flammability class of the insulating material according to UL 94:	V0
Width/grid dimension:	10.1 mm
Dimension perpendicular to mounting plate inside:	0.5 mm
End plate required:	no
Color:	gray
With integrated feed-through flange:	no
Thickness of the mounting plate:	1 to 4 mm
Number of poles:	1
Material of the insulating body:	other
