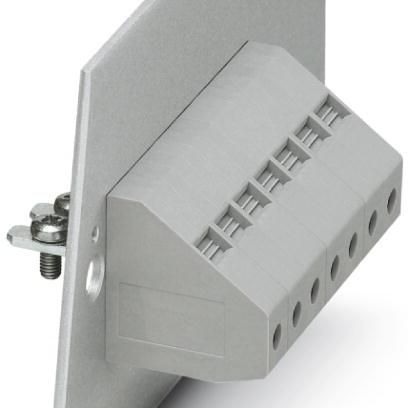

Phoenix Contact 0709903 HDFKV 16-VP GNYE 101A 0.5qmm-25qmm feed-through terminal

In stock

SKU: 563530

Price on request

€8.28

€0

Overview

Feed-through terminal, connection type: screw connection with tension sleeve, cable lug connection, number of poles: 1, load current: 76 A, cross-section: 0.5 mm² - 25 mm², connection direction of the conductor to the plug-in direction: -90 °, width: 12.1 mm, color: green-yellow

Property	Value
Connectable conductor cross-section, single-wire:	0.5 to 25 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	16 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.5 to 16 mm²
Connectable conductor cross-section, stranded:	0.5 to 16 mm²
Connection position:	side
Rated current In:	76 A
Rated voltage:	500 V
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Bolt connection
Flammability class of the insulating material according to UL 94:	V0
Width/grid dimension:	12.1 mm
End plate required:	no
Color:	green/yellow
Number of poles:	1
Material of the insulating body:	other
