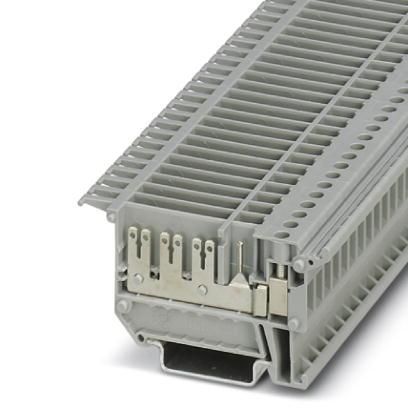

Phoenix Contact 0852067 VBST 4-FS (6-2,8-0,8) ST4 0,2qmm-4qmm grey feed-through terminal

In stock

SKU: 565346

Price on request

€3.23

€0

Overview

Feed-through terminal, nominal voltage: 800 V, nominal current: 24 A, 1st level connection on the right, connection type: screw connection, rated cross-section: 2.5 mm², cross-section: 0.2 mm² - 4 mm², connection type: flat plug connection, mounting: NS 35/7.5, NS 35/15, color: gray

Property	Value
Width/grid dimension:	6.2 mm
Length:	72 mm
Height with lowest mounting type:	39.5 mm
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.2 to 2.5 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	4
Rated current In:	24 A
Operating temperature:	-60 to 105 °C
Connectable conductor cross-section, single-wire:	0.2 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 4 mm²
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Flat plug connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V2
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	other
