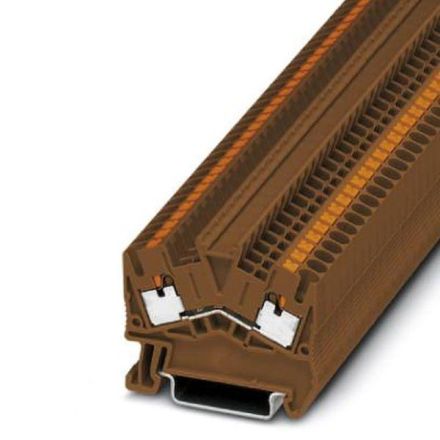

Phoenix Contact 1037085 PTS 2.5 BN feed-through terminal

In stock

SKU: 603639

Price on request

€1.17

€0

Overview

Feed-through terminal, nominal voltage: 800 V, nominal current: 24 A, connection type: push-in connection, number of connections: 2, cross-section: 0.14 mm-4 mm, AWG: 26-12, width: 5.2 mm, colour: brown, mounting type: NS 35/7.5, NS 35/15

Property	Value
Colour:	brown
Connectable conductor cross-section, finely stranded without wire end ferrule:	0.14 to 4 mm²
Rated voltage:	800 V
Number of Levels:	1
Number of terminal points per level:	2
Rated current In:	24 A
Operating temperature:	-60 to 105 °C
Connectable conductor cross-section, single-wire:	0.14 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.14 to 2.5 mm²
Design of electrical connection 1:	other
Design of electrical connection 2:	other
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	other
Explosion-tested version 'Ex e':	yes
