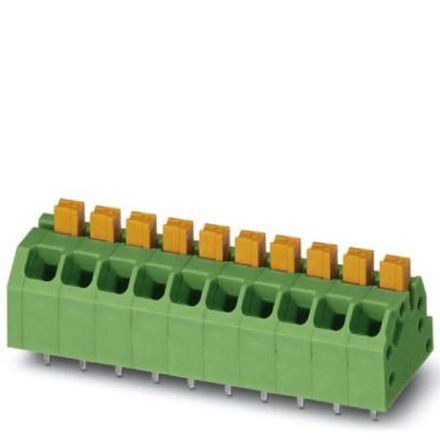

Phoenix Contact 1071004 SPTAF 1/ 7-3,5-EL-EX PCB terminal

In stock

SKU: 772120

Price on request

€3.23

€0

Overview

PCB terminal, nominal current: 16 A, nominal cross section: 1.5 mm², number of rows: 1, number of positions per row: 7, article family: SPTAF 1/..-EL-EX, pitch: 3.5 mm, connection type: push-in spring connection, assembly: wave soldering, connection direction conductor/PCB: 45 °, color: green, pin layout: linear pinning, pin length [P]: 2.6 mm, number of soldering pins per potential: 2, packaging type: tray

Property	Value
Connectable conductor cross section, single-wire:	0.2 to 1.5 mm²
Connectable conductor cross section, finely stranded with wire end ferrule:	0.25 to 0.75 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 1.5 mm²
Connectable conductor cross-section, multi-stranded:	1.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	other
Number of levels:	1
Type of banding:	other
Type of PCB mounting:	Connection contact
Rated current In:	16 A
Operating temperature:	-60 to 100 °C
Flammability class of the insulating material according to UL 94:	V0
Diameter of the connection pin:	1.1 mm
Housing color:	green
Height:	12.8 mm
Length of the pin:	2.6 mm
Connection pitch:	3.5 mm
Overvoltage category:	III
Pollution level:	2
Connection surface material:	Tin
Insulating body material:	Other
Angle circuit board/conductor connection:	Other
