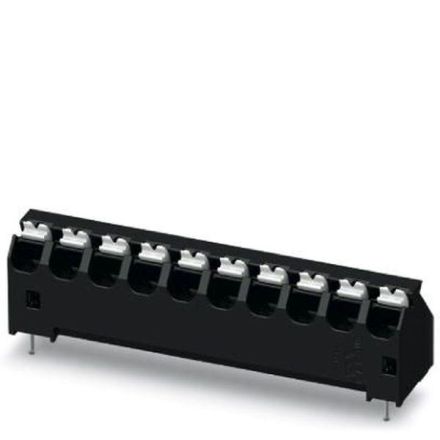

Phoenix Contact 1071209 SPTA-THR 1,5/ 9-5,08 R72 PCB terminal

In stock

SKU: 606843

Price on request

€5.76

€0

Overview

PCB terminal, nominal current: 13.5 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², number of rows: 1, number of positions per row: 9, product family: SPTA 1.5/..-THR, pitch: 5.08 mm, connection type: push-in spring connection, assembly: THR soldering, connection direction conductor/PCB: 45 °, color: black, pin length [P]: 2.6 mm, number of soldering pins per potential: 1, packaging type: belt in 72 mm width

Property	Value
Connectable conductor cross section, single-wire:	0.2 to 1.5 mm²
Connectable Conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 1.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 1.5 mm²
Connectable conductor cross-section, multi-stranded:	1.5 mm²
Conductor connection type:	Spring-loaded connection
PCB connection type:	THR connection
Number of levels:	1
Type of banding:	Blister tape (for SMD)
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	13.5 A
Operating temperature:	-40 to 105 °C
Flammability class of the insulating material according to UL 94:	V0
Diameter of the connection pin:	1.1 mm
Housing color:	black
Height:	15.07 mm
Length of pin:	2.6 mm
Pitch of connections:	5.08 mm
Overvoltage category:	III
Pollution level:	2
Material of connection surface:	Tin
Angle of circuit board/conductor connection:	other
