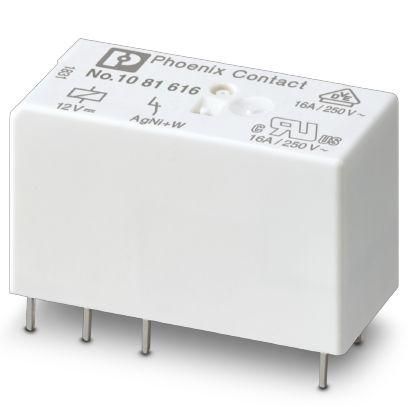

Phoenix Contact 1081616 REL-MR- 12DC/1ICT single relay

Phoenix Contact 1081616 REL-MR- 12DC/1ICT single relay

In stock

SKU: 606176

Price on request

€7.77

€0

Into a basketIn the basketGo

Overview

Plug-in miniature power relay, with tungsten pre-contact for high inrush currents up to 800 A peak, 1 normally open contact, input voltage: 12 V DC

Property	Value
Number of contacts as normally open contacts:	1
Rated control supply voltage Us at DC:	9.6 V
Voltage type for actuation:	DC
Height:	29 mm
Width:	12.7 mm
Depth:	15.7 mm
Switching behavior of the drive:	monostable
Type of switching contact:	single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	no
Protection class (IP):	other
Rated current:	0.033 A
With LED display:	no

Characteristics

Complete device with baseNo

Type of switching contactSingle contact

Switching behavior of the driveMonostable

With positively guided contactsNo

HABREL-MR-12DC/1ICT

Minimal order10 pcs

Manufacturer

HAN1081616

GTIN4055626807881

Number of contacts as normally open1

Rated control supply voltage Us at DC9.6V

Width12.7 mm

Height29 mm

With LED displayNo

With removable clampsNo

Rated current0.033A

IP protection)Other

Voltage type for actuationDC

Depth15.7 mm
