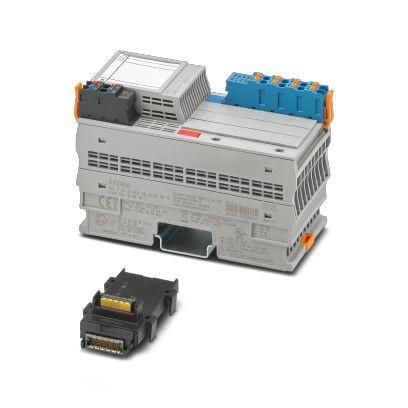

Phoenix Contact 1086902 AXL F EX IS DO4 SD 21-60 XC 1F digital module

In stock

SKU: 926768

Price on request

€646.27

€0

Overview

Axioline F, digital output module, digital outputs: 4, 21 V, 60 mA, connection technology: 2-wire, extreme conditions variant, intrinsically safe, transmission speed in the local bus: 100 Mbit/s, protection class: IP20, including bus base module and Axioline F connectors

Property	Value
Protection class (IP):	IP20
Output current:	0.06 A
Type of supply voltage:	DC
Width:	53.6 mm
Height:	130.14 mm
Depth:	75.94 mm
Rail mounting possible:	yes
Type of digital output:	other
Design of the electrical connection:	other
Rack mounting possible:	no
Permissible voltage at the output:	21 V
IO-Link Master:	no
Wall/direct mounting possible:	no
Front installation possible:	no
Suitable for safety functions:	no
Field bus connection via separate bus coupler possible:	yes
System component:	yes
Number of other HW interfaces:	2
With optical interface:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	other
Explosion protection category for dust:	other
Digital inputs configurable:	no
Number of digital outputs:	4
Digital outputs configurable:	no
