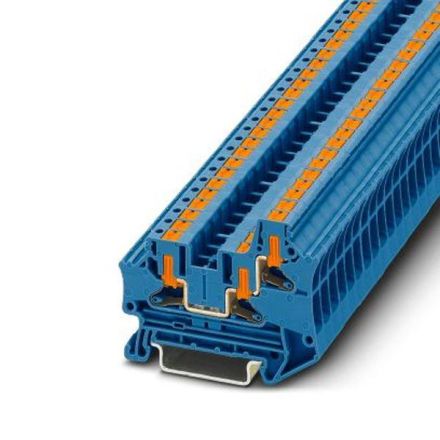

Phoenix Contact 1088732 PTV 4-TWIN BU feed-through terminal

In stock

SKU: 772308

Price on request

€1.37

€0

Overview

Feed-through terminal, nominal voltage: 1000 V, nominal current: 32 A, connection type: push-in connection, number of connections: 3, cross-section: 0.2 mm-6 mm, AWG: 24-10, width: 6.2 mm, height: 45.7 mm, color: blue, mounting type: NS 35/7.5, NS 35/15

Property	Value
Color:	blue
Connectable conductor cross-section, finely stranded without wire end ferrule:	0.2 to 6 mm²
Rated voltage:	1000 V
Number of levels:	1
Number of terminal points per level:	3
Rated current In:	32 A
Operating temperature:	-60 to 105 °C
Connectable conductor cross-section, single-wire:	0.2 to 6 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.2 to 4 mm²
Design of electrical connection 1:	other
Design of electrical connection 2:	other
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	other
Explosion-tested version 'Ex e':	yes
