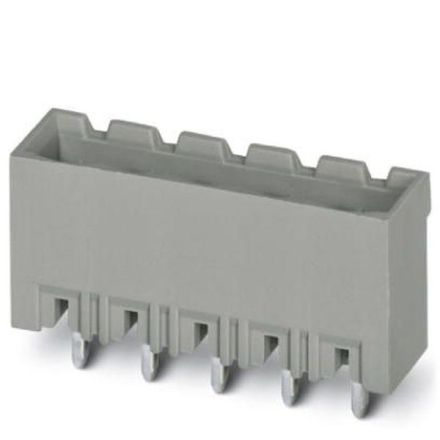

Phoenix Contact 1151179 BCH-500VS- 2 GY VPE500 PCB header

In stock

SKU: 770954

Price on request

€0.41

€0

Overview

PCB base strip, nominal cross section: 2.5 mm², color: signal gray, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: tin, contact type: pin (male), number of rows: 1, number of positions: 2, article family: BCH-VS, pitch: 5 mm, assembly: wave soldering, pin layout: linear pinning, pin length [P]: 3.9 mm, number of soldering pins per potential: 1, plug-in system: BASICLINE 2.5, plug face alignment: standard, locking: without, fastening type: without, packaging type: packed in a box

Property	Value
Number of plug contact rows:	1
Type of Banding:	Cardboard (for SMD)
Type of PCB mounting:	other
Design of electrical connection:	other
Mounting type:	other
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	12 A
Operating temperature:	-40 to 100 °C
Flammability class of the insulating material according to UL 94:	V0
Diameter of the connection pin:	1.4 mm
Contact design:	pin
Length of the pin:	3.9 mm
Pitch of the connections:	5 mm
Pitch of the contacts:	5 mm
Connector design:	fixed connector
Overvoltage category:	III
Degree of pollution:	2
Material of contact coating:	Tin
Material of insulating body:	other
Angle circuit board/contact:	other
Connection type:	PCB to cable
