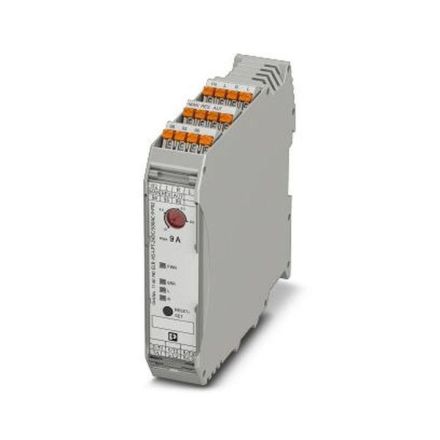

Phoenix Contact 1160740 ELR H5-I-PT- 24DC/500AC-9-P02 hybrid motor starter

Phoenix Contact 1160740 ELR H5-I-PT- 24DC/500AC-9-P02 hybrid motor starter

In stock

SKU: 772638

Price on request

€154.38

€0

Into a basketIn the basketGo

Overview

Modular hybrid motor starter for starting and reversing motors including motor protection and rotating field monitoring, input: 24VDC, output: 3~, 500VAC, 9A, connection type: push-in connection

Property	Value
Overload release current setting:	1.5 to 9 A
Voltage type for actuation:	DC
Connection type main circuit:	Spring-loaded connection
Rated operating current Ie:	9 A
Rated control supply voltage Us at DC:	19.2 V
With short-circuit release:	no
Protection class (IP):	IP20
Design of electrical connection for auxiliary and control circuit:	Spring-loaded connection
Trigger class:	CLASS 10
Type of motor starter:	Reversing starter
Rail mounting possible:	yes
Width:	22.5 mm
Height:	107.5 mm
Depth:	114 mm

Characteristics

Rated operating current Ie9 A

Design of electrical connection for auxiliary and control circuitSpring-loaded connection

Type of motor starterReversing starter

With short-circuit releaseNo

HABELR H5-I-PT-24DC/500AC-9-P02

Minimal order100 pcs

Manufacturer

HAN1160740

GTIN4063151168667

Connection type main circuitSpring-loaded connection

Trigger classCLASS 10

Rated control supply voltage Us at DC19.2V

Width22.5 mm

Height107.5 mm

IP protection)IP20

Voltage type for actuationDC

Depth114 mm

Mounting rail possibleYes

Overload release current setting1.5 to 9 A
