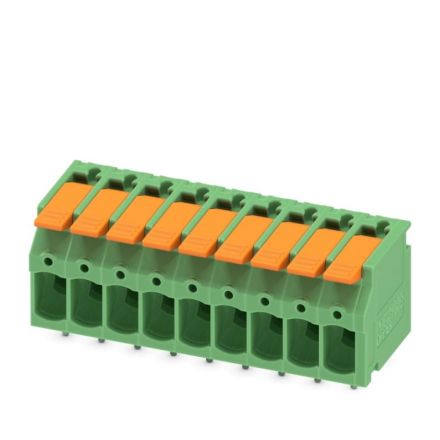

Phoenix Contact 1190305 LPT 2.5/ 9-5.0 PCB terminal

In stock
SKU: 805774
€4.01
Into a basketIn the basketGo

Overview

PCB terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, product family: LPT 2.5/, pitch: 5 mm, connection type: lever push-in connection, assembly: wave soldering, connection direction conductor/PCB: 0 °, color: green, pin layout: linear double pinning, pin length [P]: 3.5 mm, packaging type: packed in a cardboard box

Property Value
Connectable conductor cross-section, single-wire: 0.2 to 4 mm²
Connectable conductor cross-section, finely stranded with Wire end ferrule: 0.2 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule: 0.2 to 4 mm²
Connectable conductor cross-section, multi-stranded: 4 mm²
Connection type of circuit board: other
Number of electrical connections: 9
Number of levels: 1
Type of banding: Cardboard (for SMD)
Type of PCB mounting: Connection contact
Rated voltage: 400 V
Rated impulse voltage: 4 kV
Rated current In: 24 A
Operating temperature: -40 to 105 °C
Flammability class of the insulating material according to UL 94: V0
Diameter of the connection pin: 1.3 mm
Housing color: green
Height: 20.24 mm
Pin length: 3.5 mm
Connection pitch: 5 mm
Overvoltage category: III
Pollution level: 2
Connection surface material: tin
Insulating body material: other
Angle circuit board/conductor connection: other

Characteristics

Rated surge voltage4 kV
HABLPT 2.5/ 9-5.0
Minimal order50 pcs
ManufacturerPhoenix Contact
HAN1190305
GTIN4063151238988
Connectable conductor cross-section solid0.2 to 4 mm²
Connectable conductor cross-section stranded4 mm²
Rated voltage400V
Rated current In24A
Operating temperatur-40 to 105 °C
Flammability class of the insulating material according to UL 94V0
Housing colorGreen
Height20.24 mm
Degree of contamination2
Overvoltage categoryIII
Phoenix Contact 1190305 LPT 2.5/ 9-5.0 PCB terminal
Phoenix Contact 1190305 LPT 2.5/ 9-5.0 PCB terminal
€4.01
