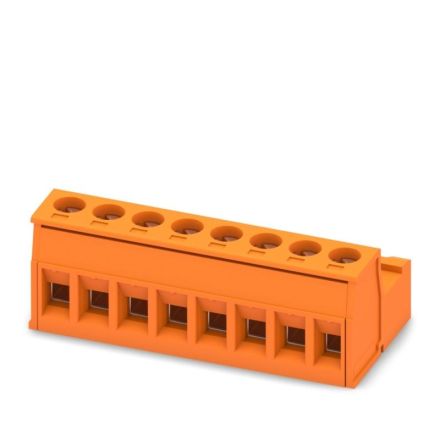

Phoenix Contact 1224257 IC 2,5/ 8-ST-5,08 OG PCB connector

Phoenix Contact 1224257 IC 2,5/ 8-ST-5,08 OG PCB connector

In stock

SKU: 771521

Price on request

€5.76

€0

Overview

PCB connector, nominal cross section: 2.5 mm, color: orange, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: tin, contact type: pin (male), number of rows: 1, number of positions per row: 8, article family: IC 2.5/..-ST, pitch: 5.08 mm, connection type: screw connection with tension sleeve, screw attack form: L longitudinal slot, connection direction conductor/PCB: 0 °, locking hook: - without locking hook, plug-in system: CLASSIC COMBICON, locking: without, fastening type: without, packaging type: packed in a box

Property	Value
Connectable cable type:	other
Connectable conductor cross section single-wire:	0.2 to 2.5 mm²
Connectable conductor cross-section, stranded with wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.2 to 2.5 mm²
Number of plug contact rows:	1
Design of the electrical connection:	Screw connection
Rated voltage:	320 V
Rated impulse voltage:	4 kV
Rated current In:	12 A
Operating temperature:	-40 to 100 °C
Flammability class of the insulating material according to UL 94:	V0
Housing color:	orange
Contact design:	other
With protective conductor:	no
Pitch of the connections:	5.08 mm
Contact pitch:	5.08 mm
Overvoltage category:	III
Pollution level:	2
Contact coating material:	Tin
Housing material:	Other
Insulating body material:	Other
Contact material:	Copper
Angle contact/conductor connection:	other
Connection type:	other
Housing coating:	other
