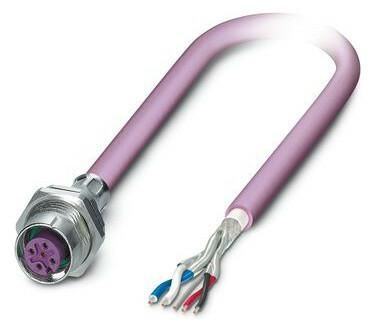

Phoenix Contact 1239936 SACCBP-M12FS-5CON-M16/1,0-920X bus system panel socket

In stock

SKU: 925165

Price on request

€31.60

€0

Overview

Device connector rear wall, CANopen®, DeviceNet™, 5-pin, PUR halogen-free, violet RAL 4001, shielded, socket, straight, M12, coding: A, on free cable end, rear wall mounting, M16 x 1.5, cable connection, cable length: 1 m, CANopen®/DeviceNet™, PUR, violet, article is lead-free according to RoHS II without exception 6c (Pb <, 0.1 %)

Property	Value
Cable length:	1 mm
Type of plug contact, outside:	without
Material of the housing:	other
Material of the contact coating:	other
Flammability class of the insulating material according to UL 94:	V0
Ambient temperature:	85 °C
Operating temperature:	-25 to 85 °C
Rated voltage:	48 V
With shield connection:	yes
Screw-in thread:	M12
Min. Number of mating cycles:	100
Protection class (IP), mounted:	other
