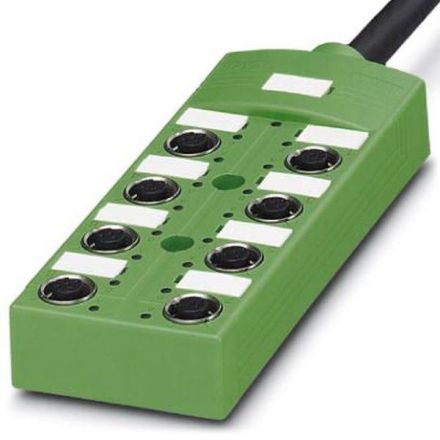

Phoenix Contact 1262955 SACB-8/ 8-L-13,0PUR SCO sensor/actuator box

In stock

SKU: 773600

Price on request

€121.20

€0

Overview

Sensor/actuator box, application: standard, number of slots: 8, number of poles: 4, coding: A - standard, slot assignment: single, status display: yes, pnp, main line connection: fixed connection 180°, PUR/PVC, cable length: 13 m, shielding: no

Property	Value
Number of sensor/actuator slots:	8
Length of the pre-assembled cable:	13 m
Number of poles of the sensor/actuator slots:	4
Protection class (IP):	IP65
Height:	26 mm
Width:	58 mm
Connection for NPN sensors:	no
With electrical isolation:	no
With LED display:	yes
Material of the contact coating:	Gold
Rated voltage:	24 V
Cable length configurable:	no
Operating temperature:	-30 to 90 °C
Number of channels per slot:	1
Explosion protection category for dust:	other
Drag chain suitability of the fixed cable version:	yes
Housing material:	plastic
Explosion protection category for gas:	other
Max. Current carrying capacity per I/O signal:	2 A
Max. Total current:	12 A
Depth:	153 mm
