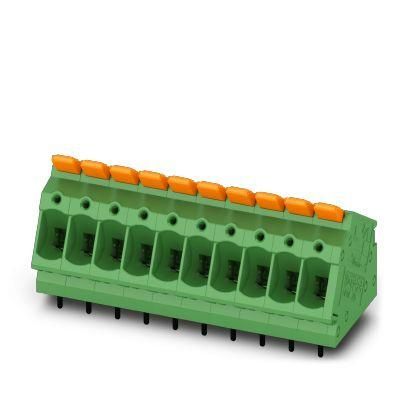

Phoenix Contact 1392019 LPTA 2,5/ 8-5,0 BK PCB terminal

In stock

SKU: 929503

Price on request

€3.99

€0

Overview

PCB terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of rows: 1, number of positions per row: 8, article family: LPTA 2.5/, pitch: 5 mm, connection type: lever push-in connection, assembly: wave soldering, connection direction conductor/PCB: 30 °, color: black, pin layout: linear double pinning, pin length [P]: 3.5 mm, packaging type: packed in a box

Property	Value
Connectable conductor cross-section, single-wire:	0.2 to 4 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	0.2 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 4 mm²
Connectable conductor cross-section, multi-stranded:	4 mm²
PCB connection type:	other
Number of levels:	1
Type of banding:	Cardboard (for SMD)
Type of PCB fastening:	Connection contact
Rated voltage:	400 V
Rated impulse voltage:	4 kV
Rated current In:	24 A
Operating temperature:	-40 to 105 °C
Flammability class of the insulating material according to UL 94:	V0
Diameter of the connection pin:	1.3 mm
Housing color:	black
Height:	23.78 mm
Length of pin:	3.5 mm
Pitch of connections:	5 mm
Overvoltage category:	III
Pollution level:	2
Material of connection surface:	Tin
Material of insulation body:	other
Angle of circuit board/conductor connection:	other
